Visualization

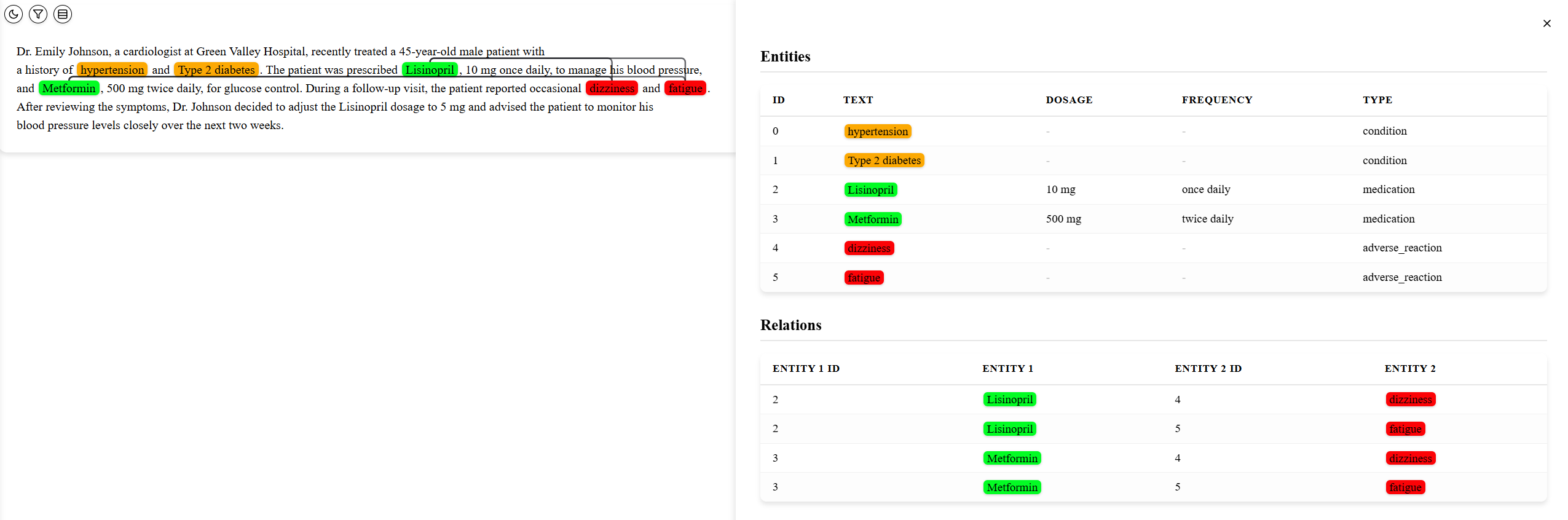

The LLMInformationExtractionDocument class supports named entity, entity attributes, and relation visualization. The implementation is through our plug-in package ie-viz.

pip install ie-viz

The viz_serve() method starts a Flask App on localhost port 5000 by default.

from llm_ie.data_types import LLMInformationExtractionDocument

# Define document
doc = LLMInformationExtractionDocument(doc_id="Medical note",
                                       text=note_text)
# Add extracted frames and relations to document
doc.add_frames(frames)
doc.add_relations(relations)
# Visualize the document
doc.viz_serve()

Alternatively, the viz_render() method returns a self-contained (HTML + JS + CSS) string. Save it to file and open with a browser.

html = doc.viz_render()

with open("Medical note.html", "w") as f:
    f.write(html)

To customize colors for different entities, use color_attr_key (simple) or color_map_func (advanced).

The color_attr_key automatically assign colors based on the specified attribute key. For example, "EntityType".

doc.viz_serve(color_attr_key="EntityType")

The color_map_func allow users to define a custom entity-color mapping function. For example,

def color_map_func(entity) -> str:
    if entity['attr']['<attribute key>'] == "<a certain value>":
        return "#7f7f7f"
    else:
        return "#03A9F4"

doc.viz_serve(color_map_func=color_map_func)
